Calcium Silicate

HI-TECK calcium silicate high temperature insulation board and pipe cover are manufactured using an industry

preferred filter press method which provides accurate dimensional tolerances and superior compressive and

flexural strength. These attributes facilitate installation and provide exceptional resistance to mechanical abuse.

HI-TECK calcium silicate insulation is asbestos free and meets or exceeds all of the requirements of

ASTM C 533, Type I&II.

Application

HI-TECK calcium silicate insulation is recommended for use on equipment and piping

operating at temperatures from ambient to121°C indoors and protected outdoors up to

649°C. It is ideally suited for industrial use in areas such as the petrochemical and power

generating industries where energy conservation, process control, personal protection and

fire protection are prerequisites.

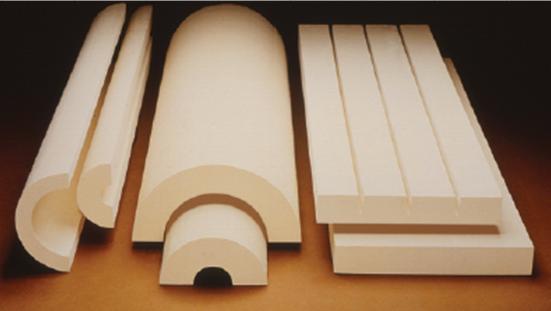

Types

HI-TECK calcium silicate block and pipe insulation、fitting are available

Density:

170kg/M3, 220-240kg/M3, 250kg/M3

Length:

2 ft(600/610mm), 3 ft(915mm)

Thickness:25-75mm(Single Layer)

Max. Service Temperature: 650℃ / 1000℃
